em_internal_event.h File Reference

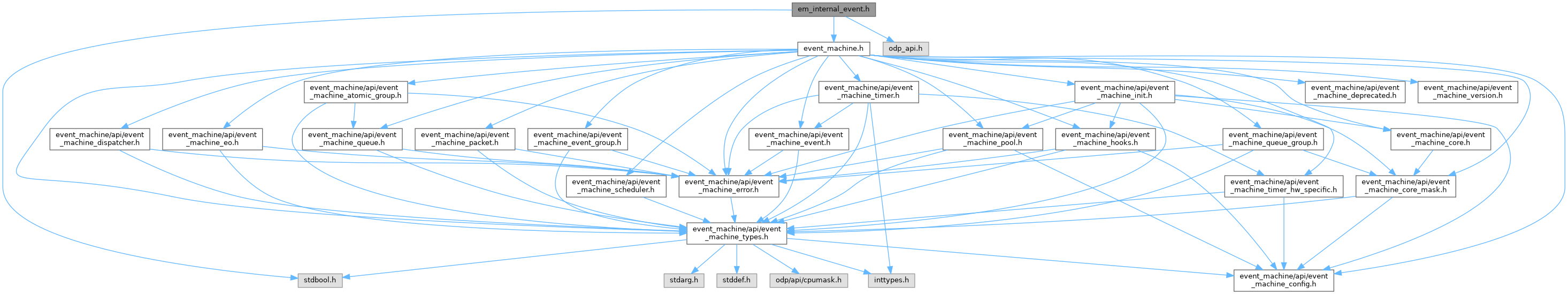

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
em_status_t	create_ctrl_queues (void)
	Create EM's internal unscheduled control queues at startup.
em_status_t	delete_ctrl_queues (void)
	Delete EM's internal unscheduled control queues at teardown.
void	poll_unsched_ctrl_queue (void)
	Poll EM's internal unscheduled control queues during dispatch.
int	send_core_ctrl_events (const em_core_mask_t *const mask, em_event_t ctrl_event, void(*f_done_callback)(void *arg_ptr), void *f_done_arg_ptr, int num_notif, const em_notif_t notif_tbl[], bool sync_operation)
	Sends an internal control event to each core set in 'mask'. More...
em_event_group_t	internal_done_w_notif_req (int event_group_count, void(*f_done_callback)(void *arg_ptr), void *f_done_arg_ptr, int num_notif, const em_notif_t notif_tbl[], bool sync_operation)
	Helper func: Allocate & set up the internal 'done' event with function callbacks and notification events. Creates the needed event group and applies the event group count. A successful setup returns the event group ready for use with em_send_group(). More...
em_status_t	send_notifs (const int num_notif, const em_notif_t notif_tbl[])
	Helper func to send notifications events.
em_status_t	check_notif (const em_notif_t *const notif)
	Check that the usage of a notification is valid.
em_status_t	check_notif_tbl (const int num_notif, const em_notif_t notif_tbl[])
	Check that the usage of a table of notifications is valid.
void	evgrp_abort_delete (em_event_group_t event_group)
	internal_done_w_notif_req() 'companion' to abort and delete the event group created by the mentioned function.

Detailed Description

EM internal-event functions

Definition in file em_internal_event.h.

Function Documentation

internal_done_w_notif_req()

em_event_group_t internal_done_w_notif_req	(	int	event_group_count,
		void(*)(void *arg_ptr)	f_done_callback,
		void *	f_done_arg_ptr,
		int	num_notif,
		const em_notif_t	notif_tbl[],
		bool	sync_operation
	)

Helper func: Allocate & set up the internal 'done' event with function callbacks and notification events. Creates the needed event group and applies the event group count. A successful setup returns the event group ready for use with em_send_group().

Returns

An event group successfully 'applied' with count and notifications.

Return values

EM_EVENT_GROUP_UNDEF

on error

See also

evgrp_abort_delete() below for deleting the event group returned by this function.

Definition at line 335 of file em_internal_event.c.

send_core_ctrl_events()

int send_core_ctrl_events	(	const em_core_mask_t *const	mask,
		em_event_t	ctrl_event,
		void(*)(void *arg_ptr)	f_done_callback,
		void *	f_done_arg_ptr,
		int	num_notif,
		const em_notif_t	notif_tbl[],
		bool	sync_operation
	)

Sends an internal control event to each core set in 'mask'.

When all cores set in 'mask' has processed the event an additional internal 'done' msg is sent to synchronize - this done-event can then trigger any notifications for the user that the operation was completed. Processing of the 'done' event will also call the 'f_done_callback' function if given.

Returns

0 on success, otherwise return the number of ctrl events that could not be sent due to error

Definition at line 135 of file em_internal_event.c.
