#include <event_machine_init.h>

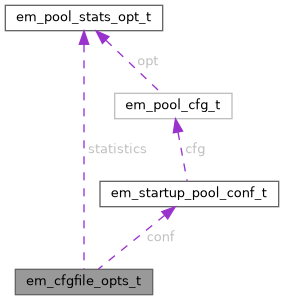

Collaboration diagram for em_cfgfile_opts_t:

[legend]

Data Fields
struct {

int enable

const char * ip_addr

int port

}	cli

struct {

unsigned int poll_ctrl_interval

uint64_t poll_ctrl_interval_ns

unsigned int poll_drain_interval

uint64_t poll_drain_interval_ns

uint64_t sched_wait_ns

bool sched_pause

}	dispatch

struct {

bool start_local_fn_at_init

bool stop_local_fn_at_term

}	eo

struct {

int enable

int store_state

int store_first_u32

int prealloc_pools

}	esv

struct {

bool order_keep

unsigned int num_order_queues

}	event_chaining

struct {

em_pool_stats_opt_t statistics

unsigned int align_offset

size_t user_area_size

unsigned int pkt_headroom

}	pool

struct {

unsigned int num_static

unsigned int num_dynamic

unsigned int num_aggr

unsigned int min_events_default

struct {

int map_mode

int custom_map [EM_QUEUE_PRIO_NUM]

} priority

}	queue

struct {

bool create_core_queue_groups

bool term_local_flush_orphans

}	queue_group

struct {

bool shared_tmo_pool_enable

uint32_t shared_tmo_pool_size

uint32_t tmo_pool_cache

struct {

uint32_t timer_event_pool_size

uint32_t timer_event_pool_cache

} ring

}	timer

struct {

enum	{ EM_VECTOR_BACKEND_PACKET = 1 , EM_VECTOR_BACKEND_EVENT = 2 }

enum em_cfgfile_opts_t:: { ... } backend

const char * backend_str

}	vector

struct {

uint32_t num

em_startup_pool_conf_t conf [EM_CONFIG_POOLS]

}	startup_pools

Detailed Description

EM config options read from the config file

See the config/em-odp.conf file for description of the options.

Definition at line 606 of file event_machine_init.h.

Field Documentation

◆ align_offset

unsigned int em_cfgfile_opts_t::align_offset

Definition at line 643 of file event_machine_init.h.

◆ backend_str

const char* em_cfgfile_opts_t::backend_str

Definition at line 682 of file event_machine_init.h.

◆ conf

em_startup_pool_conf_t em_cfgfile_opts_t::conf[EM_CONFIG_POOLS]

Definition at line 687 of file event_machine_init.h.

◆ create_core_queue_groups

bool em_cfgfile_opts_t::create_core_queue_groups

Definition at line 660 of file event_machine_init.h.

◆ custom_map

int em_cfgfile_opts_t::custom_map[EM_QUEUE_PRIO_NUM]

Definition at line 655 of file event_machine_init.h.

◆ enable

int em_cfgfile_opts_t::enable

Definition at line 608 of file event_machine_init.h.

◆ ip_addr

const char* em_cfgfile_opts_t::ip_addr

Definition at line 609 of file event_machine_init.h.

◆ map_mode

int em_cfgfile_opts_t::map_mode

Definition at line 654 of file event_machine_init.h.

◆ min_events_default

unsigned int em_cfgfile_opts_t::min_events_default

Definition at line 652 of file event_machine_init.h.

◆ num

uint32_t em_cfgfile_opts_t::num

Definition at line 686 of file event_machine_init.h.

◆ num_aggr

unsigned int em_cfgfile_opts_t::num_aggr

Definition at line 651 of file event_machine_init.h.

◆ num_dynamic

unsigned int em_cfgfile_opts_t::num_dynamic

Definition at line 650 of file event_machine_init.h.

◆ num_order_queues

unsigned int em_cfgfile_opts_t::num_order_queues

Definition at line 638 of file event_machine_init.h.

◆ num_static

unsigned int em_cfgfile_opts_t::num_static

Definition at line 649 of file event_machine_init.h.

◆ order_keep

bool em_cfgfile_opts_t::order_keep

Definition at line 637 of file event_machine_init.h.

◆ pkt_headroom

unsigned int em_cfgfile_opts_t::pkt_headroom

Definition at line 645 of file event_machine_init.h.

◆ poll_ctrl_interval

unsigned int em_cfgfile_opts_t::poll_ctrl_interval

Definition at line 614 of file event_machine_init.h.

◆ poll_ctrl_interval_ns

uint64_t em_cfgfile_opts_t::poll_ctrl_interval_ns

Definition at line 615 of file event_machine_init.h.

◆ poll_drain_interval

unsigned int em_cfgfile_opts_t::poll_drain_interval

Definition at line 617 of file event_machine_init.h.

◆ poll_drain_interval_ns

uint64_t em_cfgfile_opts_t::poll_drain_interval_ns

Definition at line 618 of file event_machine_init.h.

◆ port

int em_cfgfile_opts_t::port

Definition at line 610 of file event_machine_init.h.

◆ prealloc_pools

int em_cfgfile_opts_t::prealloc_pools

Definition at line 633 of file event_machine_init.h.

◆ sched_pause

bool em_cfgfile_opts_t::sched_pause

Definition at line 621 of file event_machine_init.h.

◆ sched_wait_ns

uint64_t em_cfgfile_opts_t::sched_wait_ns

Definition at line 620 of file event_machine_init.h.

◆ shared_tmo_pool_enable

bool em_cfgfile_opts_t::shared_tmo_pool_enable

Definition at line 665 of file event_machine_init.h.

◆ shared_tmo_pool_size

uint32_t em_cfgfile_opts_t::shared_tmo_pool_size

Definition at line 666 of file event_machine_init.h.

◆ start_local_fn_at_init

bool em_cfgfile_opts_t::start_local_fn_at_init

Definition at line 625 of file event_machine_init.h.

◆ statistics

em_pool_stats_opt_t em_cfgfile_opts_t::statistics

Definition at line 642 of file event_machine_init.h.

◆ stop_local_fn_at_term

bool em_cfgfile_opts_t::stop_local_fn_at_term

Definition at line 626 of file event_machine_init.h.

◆ store_first_u32

int em_cfgfile_opts_t::store_first_u32

Definition at line 632 of file event_machine_init.h.

◆ store_state

int em_cfgfile_opts_t::store_state

Definition at line 631 of file event_machine_init.h.

◆ term_local_flush_orphans

bool em_cfgfile_opts_t::term_local_flush_orphans

Definition at line 661 of file event_machine_init.h.

◆ timer_event_pool_cache

uint32_t em_cfgfile_opts_t::timer_event_pool_cache

Definition at line 670 of file event_machine_init.h.

◆ timer_event_pool_size

uint32_t em_cfgfile_opts_t::timer_event_pool_size

Definition at line 669 of file event_machine_init.h.

◆ tmo_pool_cache

uint32_t em_cfgfile_opts_t::tmo_pool_cache

Definition at line 667 of file event_machine_init.h.

◆ user_area_size

size_t em_cfgfile_opts_t::user_area_size

Definition at line 644 of file event_machine_init.h.

The documentation for this struct was generated from the following file:

event_machine_init.h
