#include <event_machine/api/event_machine_config.h>
#include <event_machine/api/event_machine_types.h>

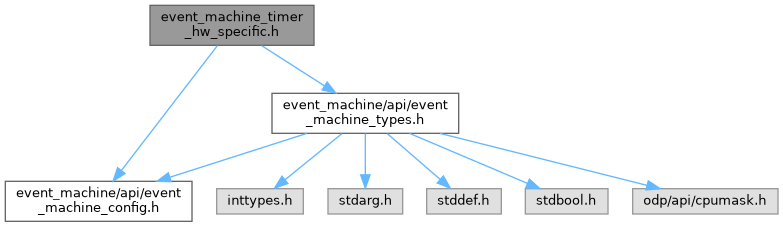

Include dependency graph for event_machine_timer_hw_specific.h:

This graph shows which files directly or indirectly include this file:

Macros
#define	PRI_TMR PRI_HDL

#define	EM_TIMER_FLAG_DEFAULT EM_TIMER_FLAG_NONE

#define	PRI_TMO "p"

#define	EM_TMO_FLAG_DEFAULT EM_TMO_FLAG_ONESHOT

#define	EM_TIMER_CLKSRC_DEFAULT EM_TIMER_CLKSRC_0

#define	EM_TIMER_CLKSRC_CPU EM_TIMER_CLKSRC_0

#define	EM_TIMER_CLKSRC_EXT EM_TIMER_CLKSRC_2

#define	EM_TIMER_UNDEF EM_STATIC_CAST(em_timer_t, EM_HDL_UNDEF)

#define	EM_TMO_UNDEF EM_STATIC_CAST(em_tmo_t, EM_UNDEF_PTR)

#define	EM_TIMER_NAME_LEN 16

Typedefs
typedef enum em_timer_flag_t	em_timer_flag_t

typedef struct em_timer_timeout_t *	em_tmo_t

typedef enum em_tmo_flag_t	em_tmo_flag_t

typedef enum em_timer_clksrc_t	em_timer_clksrc_t

Enumerations
enum	em_timer_flag_t { EM_TIMER_FLAG_NONE = 0 , EM_TIMER_FLAG_PRIVATE = 1 , EM_TIMER_FLAG_RING = 2 , EM_TIMER_FLAG_RING_FREQ = 4 }

enum	em_tmo_flag_t { EM_TMO_FLAG_ONESHOT = 1 , EM_TMO_FLAG_PERIODIC = 2 , EM_TMO_FLAG_NOSKIP = 4 }

enum	em_timer_clksrc_t { EM_TIMER_CLKSRC_0 , EM_TIMER_CLKSRC_1 , EM_TIMER_CLKSRC_2 , EM_TIMER_CLKSRC_3 , EM_TIMER_CLKSRC_4 , EM_TIMER_CLKSRC_5 , EM_TIMER_NUM_CLKSRC }

Functions
	EM_HANDLE_T (em_timer_t)

Detailed Description

EM ODP specific timer definitions

Definition in file event_machine_timer_hw_specific.h.

Macro Definition Documentation

◆ EM_TIMER_CLKSRC_CPU

#define EM_TIMER_CLKSRC_CPU EM_TIMER_CLKSRC_0

Backwards compatible macro.

Deprecated:: Temporary backwards compatibility, will be removed later

Definition at line 116 of file event_machine_timer_hw_specific.h.

◆ EM_TIMER_CLKSRC_DEFAULT

#define EM_TIMER_CLKSRC_DEFAULT EM_TIMER_CLKSRC_0

portable default clock

Examples: cli_top.c, timer_test.c, and timer_test_periodic.c.

Definition at line 111 of file event_machine_timer_hw_specific.h.

◆ EM_TIMER_CLKSRC_EXT

#define EM_TIMER_CLKSRC_EXT EM_TIMER_CLKSRC_2

Backwards compatible macro.

Deprecated:: Temporary backwards compatibility, will be removed later

Definition at line 120 of file event_machine_timer_hw_specific.h.

◆ EM_TIMER_FLAG_DEFAULT

#define EM_TIMER_FLAG_DEFAULT EM_TIMER_FLAG_NONE

Definition at line 70 of file event_machine_timer_hw_specific.h.

◆ EM_TIMER_NAME_LEN

#define EM_TIMER_NAME_LEN 16

Definition at line 135 of file event_machine_timer_hw_specific.h.

◆ EM_TIMER_UNDEF

#define EM_TIMER_UNDEF EM_STATIC_CAST(em_timer_t, EM_HDL_UNDEF)

EM_TIMER_UNDEF value must be defined here and should normally be 0

Examples: cli_top.c, timer_hello.c, timer_test.c, timer_test_periodic.c, and timer_test_ring.c.

Definition at line 125 of file event_machine_timer_hw_specific.h.

◆ EM_TMO_FLAG_DEFAULT

#define EM_TMO_FLAG_DEFAULT EM_TMO_FLAG_ONESHOT

default timeout is oneshot

Definition at line 91 of file event_machine_timer_hw_specific.h.

◆ EM_TMO_UNDEF

#define EM_TMO_UNDEF EM_STATIC_CAST(em_tmo_t, EM_UNDEF_PTR)

EM_TMO_UNDEF value must be defined here and should normally be 0

Examples: cli_top.c, timer_hello.c, timer_test.c, timer_test_periodic.c, and timer_test_ring.c.

Definition at line 130 of file event_machine_timer_hw_specific.h.

◆ PRI_TMO

#define PRI_TMO "p"

em_tmo_t printf format

Definition at line 77 of file event_machine_timer_hw_specific.h.

◆ PRI_TMR

#define PRI_TMR PRI_HDL

em_timer_t printf format

Examples: cli_top.c, timer_hello.c, timer_test.c, timer_test_periodic.c, and timer_test_ring.c.

Definition at line 52 of file event_machine_timer_hw_specific.h.

Typedef Documentation

◆ em_tmo_t

typedef struct em_timer_timeout_t* em_tmo_t

em_tmo_t (timeout handle) needs to be defined by the EM implementation

Definition at line 75 of file event_machine_timer_hw_specific.h.

Enumeration Type Documentation

◆ em_timer_clksrc_t

enum em_timer_clksrc_t

Definition at line 100 of file event_machine_timer_hw_specific.h.

◆ em_timer_flag_t

enum em_timer_flag_t

Enumerator
EM_TIMER_FLAG_NONE	default
EM_TIMER_FLAG_PRIVATE	single thread use. Not multithread safe, but potentially faster
EM_TIMER_FLAG_RING	is periodic ring. This does not need to be manually set, init does
EM_TIMER_FLAG_RING_FREQ	ring frequency flag

Definition at line 60 of file event_machine_timer_hw_specific.h.

◆ em_tmo_flag_t

enum em_tmo_flag_t

Enumerator
EM_TMO_FLAG_ONESHOT	to select one-shot
EM_TMO_FLAG_PERIODIC	to select periodic
EM_TMO_FLAG_NOSKIP	see periodic ack

Definition at line 85 of file event_machine_timer_hw_specific.h.

Function Documentation

◆ EM_HANDLE_T()

EM_HANDLE_T ( em_timer_t )

em_timer_t (timer handle) needs to be defined by the EM implementation.
