#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <stdio.h>
#include <event_machine.h>
#include "em_internal_event_types.h"
#include "em_mem.h"
#include "em_queue_group_types.h"
#include "em_queue_types.h"
#include "misc/objpool.h"

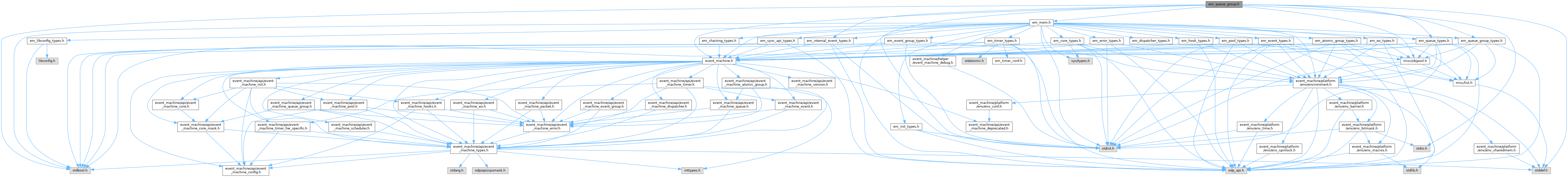

Include dependency graph for em_queue_group.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	invalid_qgrp(queue_group) ((unsigned int)qgrp_hdl2idx((queue_group)) >= EM_MAX_QUEUE_GROUPS)

Functions
em_status_t	queue_group_init (queue_group_tbl_t const queue_group_tbl, queue_group_pool_t const queue_group_pool)

em_status_t	queue_group_init_local (void)

em_status_t	queue_group_term (void)

void	queue_group_join_all (void)
	The calling core joins all available queue groups.

void	queue_group_leave_all (bool flush_orphan_qgrps)
	The calling core leaves all queue groups it is part of.

em_queue_group_t	queue_group_create (const char name, const em_core_mask_t mask, int num_notif, const em_notif_t notif_tbl[], em_queue_group_t queue_group)

em_queue_group_t	queue_group_create_sync (const char name, const em_core_mask_t mask, em_queue_group_t requested_queue_group)

em_status_t	queue_group_modify (queue_group_elem_t const qgrp_elem, const em_core_mask_t new_mask, int num_notif, const em_notif_t notif_tbl[], bool is_delete)

em_status_t	queue_group_modify_sync (queue_group_elem_t const qgrp_elem, const em_core_mask_t new_mask, bool is_delete)

void	queue_group_add_queue_list (queue_group_elem_t const queue_group_elem, queue_elem_t const queue_elem)

void	queue_group_rem_queue_list (queue_group_elem_t const queue_group_elem, queue_elem_t const queue_elem)

unsigned int	queue_group_count (void)

em_status_t	queue_group_check_mask (const em_core_mask_t *mask)
	Check that only running EM cores are set in mask.

void	queue_group_info_print_all (void)
	Print EM queue group info.

void	queue_group_queues_print (em_queue_group_t qgrp)
	Print info about all queues belonging to the given queue group.

void	i_event__qgrp_add_core_req (const internal_event_t *i_ev)
	EM internal event handler, add core to an EM queue group. (see em_internal_event.c&h)

void	i_event__qgrp_rem_core_req (const internal_event_t *i_ev)
	EM internal event handler, remove core from an EM queue group. (see em_internal_event.c&h)

Detailed Description

EM internal queue group functions

Definition in file em_queue_group.h.

Macro Definition Documentation

◆ invalid_qgrp

#define invalid_qgrp ( queue_group ) ((unsigned int)qgrp_hdl2idx((queue_group)) >= EM_MAX_QUEUE_GROUPS)

Definition at line 58 of file em_queue_group.h.

Function Documentation

◆ i_event__qgrp_add_core_req()

void i_event__qgrp_add_core_req ( const internal_event_t * i_ev )

EM internal event handler, add core to an EM queue group. (see em_internal_event.c&h)

Handle the internal event requesting to add the core to an ODP schedule group that is related to an EM queue group.

Definition at line 1580 of file em_queue_group.c.

◆ i_event__qgrp_rem_core_req()

void i_event__qgrp_rem_core_req ( const internal_event_t * i_ev )

EM internal event handler, remove core from an EM queue group. (see em_internal_event.c&h)

Handle the internal event requesting to remove the core from an ODP schedule group that is related to an EM queue group.

Definition at line 1593 of file em_queue_group.c.

◆ queue_group_add_queue_list()

void queue_group_add_queue_list	(	queue_group_elem_t *const	queue_group_elem,
		queue_elem_t *const	queue_elem
	)

Definition at line 1769 of file em_queue_group.c.

◆ queue_group_check_mask()

em_status_t queue_group_check_mask ( const em_core_mask_t * mask )

Check that only running EM cores are set in mask.

Parameters

mask	Queue group core mask

Returns: EM_OK if mask is valid

Definition at line 931 of file em_queue_group.c.

◆ queue_group_count()

unsigned int queue_group_count ( void )

Definition at line 1789 of file em_queue_group.c.

◆ queue_group_create()

em_queue_group_t queue_group_create	(	const char *	name,
		const em_core_mask_t *	mask,
		int	num_notif,
		const em_notif_t	notif_tbl[],
		em_queue_group_t	requested_queue_group
	)

Allow creating a queue group with a specific handle if requested and available.

Definition at line 903 of file em_queue_group.c.

◆ queue_group_create_sync()

em_queue_group_t queue_group_create_sync	(	const char *	name,
		const em_core_mask_t *	mask,
		em_queue_group_t	requested_queue_group
	)

Allow creating a queue group synchronously with a specific handle if requested and available. No need for sync blocking when creating a new queue group.

Definition at line 918 of file em_queue_group.c.

◆ queue_group_info_print_all()

void queue_group_info_print_all ( void )

Print EM queue group info.

Definition at line 1861 of file em_queue_group.c.

◆ queue_group_init()

em_status_t queue_group_init	(	queue_group_tbl_t *const	queue_group_tbl,
		queue_group_pool_t *const	queue_group_pool
	)

Queue group inits done at global init (once at startup on one core)

Definition at line 176 of file em_queue_group.c.

◆ queue_group_init_local()

em_status_t queue_group_init_local ( void )

Definition at line 238 of file em_queue_group.c.

◆ queue_group_join_all()

void queue_group_join_all ( void )

The calling core joins all available queue groups.

Main use case for em_term(): to be able to flush the scheduler with only the last EM-core running we need to modify all queue groups to include this last core in the queue groups' core masks

Definition at line 536 of file em_queue_group.c.

◆ queue_group_leave_all()

void queue_group_leave_all ( bool flush_orphan_qgrps )

The calling core leaves all queue groups it is part of.

Also flushes the scheduler from events from queues that belong to queue groups that would only be services by the terminating core.

Main use case for em_term_local()/em_term_core()

Parameters

flush_orphan_qgrps Flush the scheduler from events from queues that belong to queue groups that only this core is handling queues for.

Definition at line 581 of file em_queue_group.c.

◆ queue_group_modify()

em_status_t queue_group_modify	(	queue_group_elem_t *const	qgrp_elem,
		const em_core_mask_t *	new_mask,
		int	num_notif,
		const em_notif_t	notif_tbl[],
		bool	is_delete
	)

Called by em_queue_group_modify with flag is_delete=0 and by em_queue_group_delete() with flag is_delete=1

Parameters

qgrp_elem	Queue group element
new_mask	New core mask
num_notif	Number of entries in notif_tbl (0 for no notification)
notif_tbl	Array of notifications to send as the operation completes
is_delete	Is this modify triggered by em_queue_group_delete()?

Definition at line 1259 of file em_queue_group.c.

◆ queue_group_modify_sync()

em_status_t queue_group_modify_sync	(	queue_group_elem_t *const	qgrp_elem,
		const em_core_mask_t *	new_mask,
		bool	is_delete
	)

Called by em_queue_group_modify_sync with flag is_delete=0 and by em_queue_group_delete_sync() with flag is_delete=1

Parameters

qgrp_elem	Queue group element
new_mask	New core mask
is_delete	Is this modify triggered by em_queue_group_delete_sync()?

Definition at line 1381 of file em_queue_group.c.

◆ queue_group_queues_print()

void queue_group_queues_print ( em_queue_group_t qgrp )

Print info about all queues belonging to the given queue group.

Definition at line 1923 of file em_queue_group.c.

◆ queue_group_rem_queue_list()

void queue_group_rem_queue_list	(	queue_group_elem_t *const	queue_group_elem,
		queue_elem_t *const	queue_elem
	)

Definition at line 1778 of file em_queue_group.c.

◆ queue_group_term()

em_status_t queue_group_term ( void )

Definition at line 275 of file em_queue_group.c.
